BASIC BARRIER

This design tool was developed in order to enable consultants to design flood barriers specific to particular project requirements and derive the dimensions of the structural components.

It is a basic flexible tool which can be adapted by industry to fit particular needs, know-how, innovations etc.

The key characteristics of this basic tool are:

         User selects material of pavement surface

         User selects material of flooded surface

         Loading on flooded face is site specific

         Loading on closed barrier is traffic specific

         Mounting mechanism to match operating requirements

         Material durability defined by user

         Cost of Barrier can be adjusted

Sketchup 3D image

         Barrier Construction Animation Poster

         Barrier Mounting - Animation Poster

         River Application - Animation Poster

         Sea front/ Coastal Application - Animation Poster

         Basement Application - Animation Poster

         Culvert Overflow Application - Animation Poster

THEORY

The theory behind this tool is presented in this document.

PUBLICATIONS

Flood Resilience Technology as a Tool of Adaptation of the Built Environment to Increased Flood Hazard and Risk.

Volos, 2012

PROTOTYPE

A prototype barrier was presented in the SMARTeST Conference, Athens Sept. 2012.

P1010311

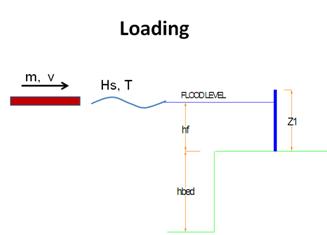

BARRIER LOADING



River-Still flood level

This spreadsheet computes the loading on vertical flood barrier for:

         Hydrostatic loading

         Current loading

         Regular small amplitude wave loading

         Wind Loading on barrier above still flood level

         Debris Impact Loading

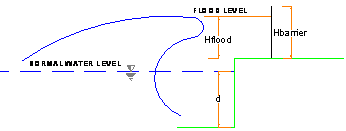

Coastal Broken wave loading

This spreadsheet computes the loading on vertical flood barrier for:

         Broken wave loading

         Wind Loading on barrier above flood level

STRUCTURAL ANALYSIS



Simply supported beam This spreadsheet computes the bending moment and shear force diagram for the case of a straight beam simply supported on the two ends.

Cantilever beam This spreadsheet computes the bending moment and shear force diagram for the case of a straight beam fixed at the base.
